Product Introduction

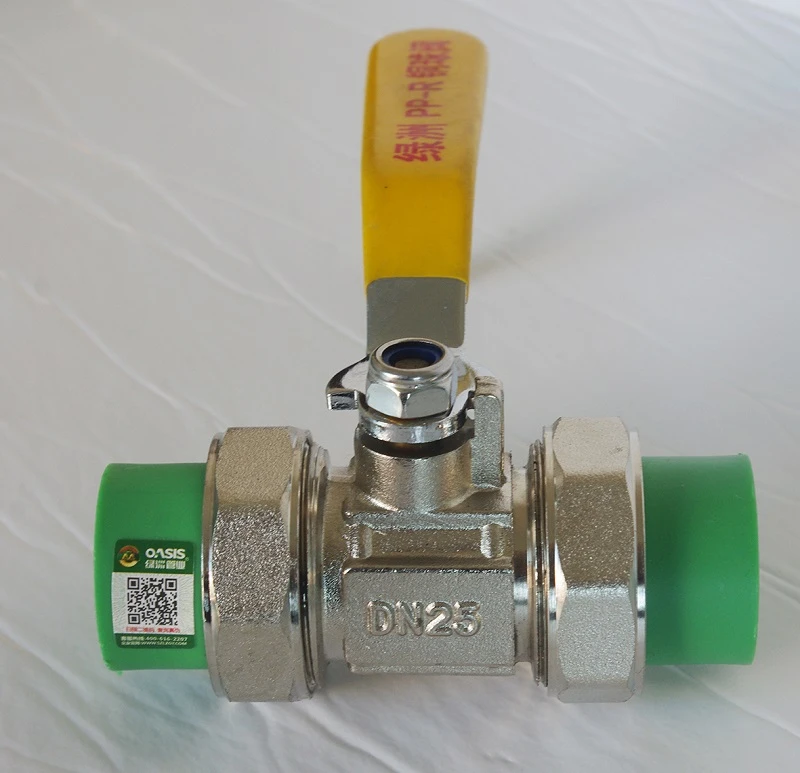

PPR Coupling Ball Valve: Complete Flow Control in One Simple Unit
Stop dealing with multiple connections and potential leak points. Our PPR coupling ball valve combines the valve body and connectors into a single, fusion-welded unit that eliminates transition joints. This all-in-one design means you get a permanent, leak-free installation that's stronger than the pipe itself. Whether you're installing in tight spaces or need reliable shut-off for maintenance, this valve delivers smooth operation and lasting performance.
What Makes This Valve Different
1. All-in-One Design
The valve body and PPR connectors are fused during manufacturing, creating a single, seamless unit. This eliminates the weak points where traditional valves connect to pipes. I've seen too many leaks at threaded valve connections - our design solves this permanently.
2. Full-Bore Flow
The oversized ball and straight-through design provide minimal flow restriction. Unlike valves that reduce pipe diameter and create pressure drops, ours maintains full flow capacity. Your water pressure stays strong whether the valve is open or closed.
3. Easy Operation
The ergonomic handle gives you positive quarter-turn control with clear open/close positions. Even after years of use, the smooth operation remains consistent - no sticking or seizing like cheaper valves.
4. Built to Last
The brass ball and stem are encapsulated in PPR, protected from corrosion and scale buildup. The reinforced construction handles pressure spikes without failing. We've had these installed in industrial applications for over eight years with zero failures.
Technical Specifications
• Connection Type: PPR socket fusion
• Size Range: 20mm, 25mm, 32mm, 40mm
• Pressure Rating: PN20 (2.0MPa at 20°C)
• Temperature Range: -20°C to 95°C
• Ball Material: Chromium-plated brass
• Seal Material: Reinforced EPDM
• Handle: Impact-resistant polymer with position lock
Why This Valve Makes Sense
After ten years of manufacturing PPR products, we've learned what makes a valve truly reliable. The fusion-welded construction eliminates the weakest link in traditional valve installations. Every valve is pressure-tested at 2.5MPa before shipping, and we verify smooth operation through multiple cycles.
The full-bore design means no flow restriction, which can significantly impact system efficiency in larger installations. Since the working components are completely encapsulated, they're protected from corrosion and mineral buildup that plague exposed metal valves.
From residential plumbing to industrial process lines, this valve has proven itself in thousands of installations. It's the smart choice when you need reliable flow control without compromise.
Where It Works Best
Residential Applications
Perfect for main shut-offs, water heater isolation, and fixture control in homes and apartments. The compact design fits easily in utility closets and crawl spaces.
Commercial Systems
Ideal for zone control in office buildings, hotels, and schools. The reliable operation handles frequent use without maintenance.
Industrial Use
Suitable for process water lines and equipment isolation in factories. The corrosion-resistant materials stand up to demanding environments.
Maintenance & Repair
Essential for creating service loops and isolation points in existing systems. Makes future repairs faster and cleaner.
Installation Guide
Preparation
Cut pipe ends square and deburr
Clean connection surfaces
Mark insertion depth on pipes
Installation Steps
1. Heat both valve sockets and pipe ends simultaneously
2. Insert pipes to depth marks in one smooth motion
3. Hold aligned for 30 seconds without twisting
4. Allow full cooling before operation
5. Test operation before system pressurization
Professional Tips
Install with handle accessible for operation
Support pipes on both sides of valve
Allow extra space for handle clearance
Pressure test after complete cooling
FAQ
1. How does this compare to separate valve and couplings?
You eliminate two potential leak points and save installation time. The fused construction is stronger than pipe connections made on site.
2. Can the valve be repaired if it fails?
The unit is designed as a complete assembly. While individual components rarely fail, replacement requires cutting out and fusion-welding a new unit.
3. Is the handle position adjustable?
Yes, the handle can be repositioned in 90-degree increments to avoid obstructions without affecting operation.
4. What's the expected service life?
We've tested these through 20,000 operation cycles with no performance degradation. In normal use, they'll outlast the piping system.
5. Are these suitable for underground installation?
Yes, but we recommend installing in accessible valve boxes and using protective wrapping in corrosive soils.
